MCMC Diagnostics

MCMC Diagnostics#

Once you have generated samples from an MCMC chain, it is crucial to assess whether the chain has converged and how many independent samples you have effectively obtained. BlackJAX provides native utilities for common diagnostics, and it integrates seamlessly with ArviZ for more advanced analysis.

import jax
import jax.numpy as jnp
import jax.scipy.stats as stats
import matplotlib.pyplot as plt
import numpy as np
import arviz as az

import blackjax

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[1], line 4
      1 import jax
      2 import jax.numpy as jnp
      3 import jax.scipy.stats as stats
----> 4 import matplotlib.pyplot as plt
      5 import numpy as np
      6 import arviz as az
      7

ModuleNotFoundError: No module named 'matplotlib'

Generating multiple chains#

Diagnostics like \(\hat{R}\) (R-hat) require multiple chains to compare within-chain and between-chain variance. Let’s set up a simple 1D Gaussian model and sample 4 chains.

def logdensity_fn(x):
    return jnp.sum(stats.norm.logpdf(x, 0, 1))

# Sampling parameters
num_chains = 4
num_samples = 1000
step_size = 0.5
inverse_mass_matrix = jnp.ones(1)

nuts = blackjax.nuts(logdensity_fn, step_size, inverse_mass_matrix)

# Initialize multiple chains
rng_key = jax.random.key(0)
initial_positions = jax.random.normal(rng_key, (num_chains, 1)) * 5 # Disperse starting points
initial_states = jax.vmap(nuts.init)(initial_positions)

# Inference loop using jax.lax.scan
def inference_loop(rng_key, initial_state):
    @jax.jit
    def one_step(state, rng_key):
        state, info = nuts.step(rng_key, state)
        return state, (state, info)

    keys = jax.random.split(rng_key, num_samples)
    _, (states, infos) = jax.lax.scan(one_step, initial_state, keys)
    return states, infos

# Run chains in parallel using vmap
rng_key, sample_key = jax.random.split(rng_key)
sample_keys = jax.random.split(sample_key, num_chains)
states, infos = jax.vmap(inference_loop)(sample_keys, initial_states)

# states.position has shape (num_chains, num_samples, 1)
print(f"Samples shape: {states.position.shape}")

Native BlackJAX Diagnostics#

BlackJAX provides two primary diagnostic functions: potential_scale_reduction (R-hat) and effective_sample_size (ESS). These functions expect an input array with dimensions corresponding to chains and samples.

Potential Scale Reduction (\(\hat{R}\))#

R-hat measures the convergence of multiple chains. A value close to 1.0 (typically \(< 1.05\) or even \(< 1.01\)) indicates that the chains have converged to the same distribution.

rhat = blackjax.rhat(states.position)
print(f"R-hat: {rhat}")

Effective Sample Size (ESS)#

ESS estimates the number of independent samples contained in the chain, accounting for autocorrelation.

ess = blackjax.ess(states.position)
print(f"ESS: {ess}")

Integration with ArviZ#

While BlackJAX provides core utilities, ArviZ is the industry standard for Bayesian visualization and diagnostic reporting. You can easily convert BlackJAX output to an ArviZ InferenceData object.

Converting to InferenceData#

# ArviZ expects (chain, draw, *shape)
# BlackJAX vmap output is already (chain, draw, *shape)
dataset = az.from_dict(
    posterior={"x": states.position},
    sample_stats={
        "diverging": infos.is_divergent,
        "acceptance_rate": infos.acceptance_rate,
    }
)

az.summary(dataset)

Visualizing Convergence#

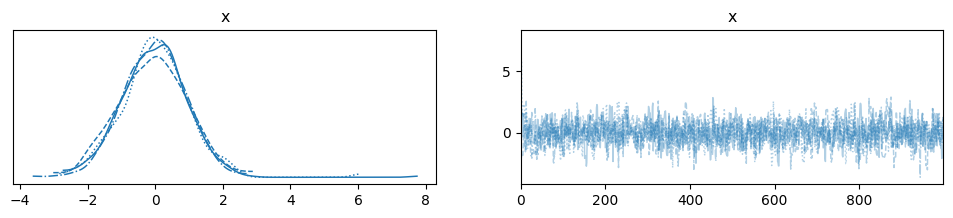

You can use ArviZ to plot trace plots, which help visually inspect chain mixing and convergence.

az.plot_trace(dataset)
plt.show()

Autocorrelation#

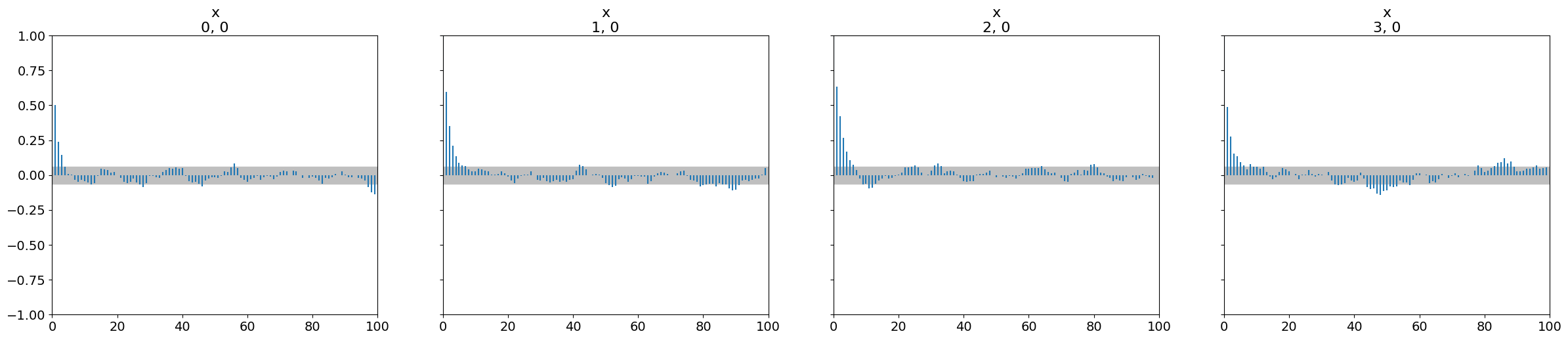

Autocorrelation plots help understand how quickly the information in the chain is being “refreshed.”

az.plot_autocorr(dataset)
plt.show()

Pareto Smoothed Importance Sampling (PSIS)#

BlackJAX also includes psis_weights, which is useful for algorithms like Pathfinder or Variational Inference to assess the quality of the approximation and perform importance resampling.

# Dummy log-ratios for demonstration
log_ratios = jax.random.normal(rng_key, (1000,))
log_weights, pareto_k = blackjax.diagnostics.psis_weights(log_ratios)

print(f"Pareto k statistic: {pareto_k}")
# A value of k < 0.7 is generally considered a good approximation.

Kernelized Stein discrepancy#

KSD uses the target score (gradient of its log density), so its normalizing constant is not needed :cite:p:liu2016kernelized. It complements R-hat rather than replacing it. Use approximately independent draws (for example, thinned chain draws). Autocorrelation can inflate it, and even IMQ KSD can fail to reveal an unvisited mode. A small value alone does not certify convergence.

blackjax.diagnostics.kernelized_stein_discrepancy returns squared KSD. statistic="v" includes diagonal pairs and has a sample-dependent bias of order 1/n, even for exact draws. statistic="u" excludes the diagonal; it can be negative. Neither option returns a calibrated p-value or automatic stopping rule. Compare values only with attention to the kernel, sample count and dependence.

A Gaussian RBF kernel is not suitable for detecting non-convergence in dimension three or higher. Here we use the inverse multiquadric (IMQ) kernel with c=1 and beta=-0.5. IMQ convergence guarantees require suitable target conditions; heavy-tailed targets with bounded scores remain a known gap :cite:p:gorham2017kernels. A positive semidefinite kernel by itself is not enough to identify distributions; integral strict positive definiteness and the target’s Stein boundary conditions are additional requirements.

Rows are processed sequentially, with vectorized columns. Pairwise work is quadratic in sample count, and mixed Hessians have d² entries; temporary pairwise storage scales as O(n*d²). This example pools a thinned subset from each chain:

import functools
from blackjax.diagnostics import imq_kernel

ksd_samples = states.position[:, ::20, :].reshape(-1, 1)
ksd_squared = jax.jit(functools.partial(
    blackjax.diagnostics.kernelized_stein_discrepancy,
    grad_logdensity_fn=jax.grad(logdensity_fn),
    kernel=imq_kernel,
    statistic="u",
))(ksd_samples)
print(f"Squared KSD U-statistic: {ksd_squared}")

This printed value is illustrative, not evidence of convergence. Even exact iid samples give a range of empirical values; no null calibration is performed here.
